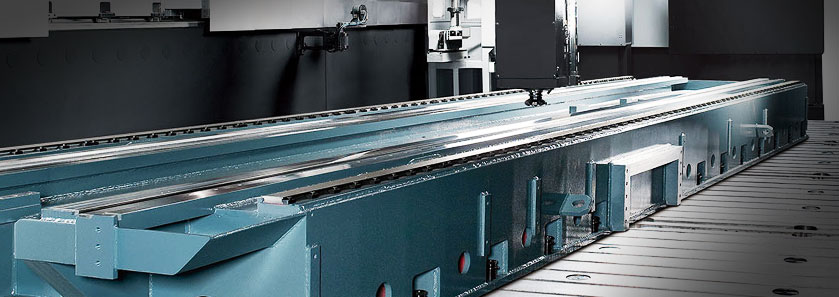

PRODUCTION BRIDGE MILLING

HTP Series / Super Rigid Bridge Type Machining Center X-axis travel : 4,000 ~ 7,000 mm Y-axis travel : 2,500 ~ 4,800 mm Z-axis travel : 1,000 / 1,200 / 1,400 mm Dist. from spindle nose to table top : 200 ~ 1,200 / 1,400 / 1,600 mm Dist. between columns : 2,700 / 3,500 / 4,300 mm Table size ( X ) : 4,020 ~ 7,020 mm Table size ( Y ) : 2,400 / 3,000 mm	Detail Info Specification
LG Series / Gantry Type Machining Center X-axis travel : 4,000 ~ 20,000 mm Y-axis travel : 3,000 ~ 7,000 mm Z-axis travel : 1,000 mm Dist. between columns : 3,800 ~ 7,800 mm Table load capacity : 2,500 kg / m² Spindle speed : 4,000 rpm ( 6,000 / 8,000 / 10,000 rpm Opt. ) Spindle power ( cont. / 30 min. ) : 22 / 26 kW	Detail Info Specification
LP Series / Bridge Type Machining Center X-axis travel : 2,500 ~ 7,000 mm Y-axis travel : 1,600 ~ 3,300 mm Z-axis travel : 760 mm ( 1,000 / 1,200 / 1,400 mm Opt. ) Dist. between columns : 1,700 ~ 3,500 mm Table load capacity : 8,000 ~ 20,000 kg Spindle speed : 6,000 rpm ( 8,000 / 10,000 rpm Opt. ) Spindle power ( cont. / 30 min. ) : 22 / 26 kW	Detail Info Specification
SP Series / Bridge Type Machining Center X-axis travel : 2,100 ~ 4,000 mm Y-axis travel : 1,600 mm Z-axis travel : 760 mm Dist. between columns : 1,700 mm Table load capacity : 8,000 ~ 12,000 kg Spindle speed : 6,000 rpm ( 8,000 / 10,000 rpm Opt. ) Spindle power ( cont. / 30 min. ) : 22 / 26 kW	Detail Info Specification
VP Series / Bridge Type Machining Center X-axis travel : 2,000 ~ 6,000 mm Y-axis travel : 1,200 mm Z-axis travel : 760 mm Dist. between columns : 1,300 mm Table load capacity : 3,500 ~ 8,000 kg Spindle speed : 6,000 rpm / 10,000 rpm Spindle power ( cont. / 30 min. ) : 11 / 15 kW 22 / 26kW	Detail Info Specification
VP-HS Series / Bridge Type Machining Center X-axis travel : 1,600 ~ 5,000 mm Y-axis travel : 1,200 mm Z-axis travel : 760 mm Dist. from spindle nose to table top : 200 ~ 960 mm Dist. between columns : 1,300 mm Table size ( X ) : 1,600 ~ 5,000 mm Table size ( Y ) : 1,100 mm	Detail Info Specification
HD Series / Bridge Type Machining Center X-axis travel : 2,000 / 3,000 mm Y-axis travel : 1,200 mm Z-axis travel : 760 mm Dist. between columns : 1,300 mm Table load capacity : 4,500 / 5,500 kg Spindle speed : 6,000 rpm Spindle power ( cont. / 30 min. ) : 22 / 26 kW	Detail Info Specification
