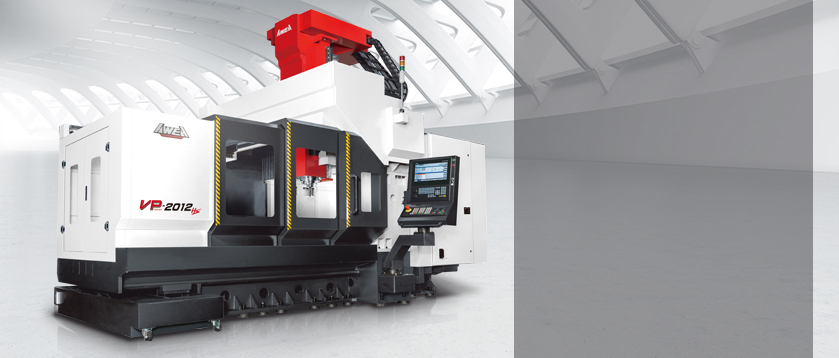

VP-HS series

X-axis travel : 1,600 mm ~ 5,000 mm

Y-axis travel : 1,200 mm

Z-axis travel : 760 mm

Dist. between columns : 1,300 mm

Table load capacity : 3,000 ~ 8,000 kg

Spindle speed : Direct-driven spindle 10,000 rpm

Spindle power ( cont. / 30 min. ) : 22 / 26 kW

Spindle taper : BBT50 ( Opt. BBT40 )

X-axis rapid feedrate : 24 / 20 / 10 / 8 m/min.

Y-axis rapid feedrate : 24 m/min.

Z-axis rapid feedrate : 20 m/min.

Tool magazine capacity : 32 T ( Opt. 24 / 40 T )
