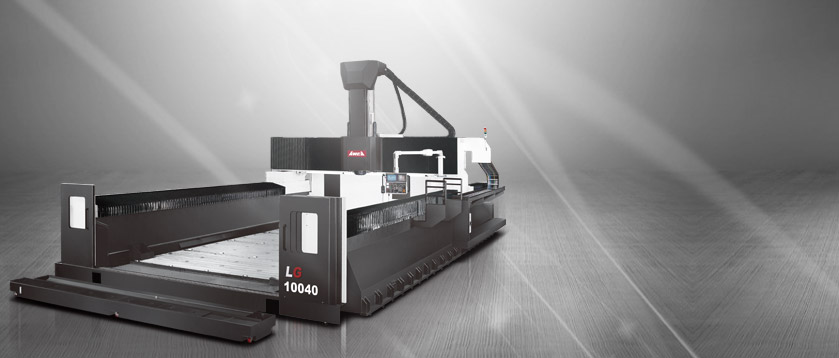

LG series

X-axis travel : 4,000 ~ 20,000 mm

Y-axis travel : 3,000 ~ 7,000 mm

Z-axis travel : 1,000 mm

Dist. between columns : 3,800 ~ 7,800 MM

Table size ( X direction ) : 4,000 ~ 20,000 mm

Table size ( Y direction ) : 2,800 ~ 6,800 mm

Table load capacity : 2,500 kg/m²

Spindle speed : 4,000 rpm Gear Spindle ( Std. )

5,000 / 6,000 rpm Gear Spindle ( Opt. )

6,000 / 8,000 rpm Bulit-in Spindle ( Opt. )

Spindle motor ( cont. / 30 min. ) : 22 / 26 kW

Tool magazine capacity : 32 T ( 60 T Opt.)
