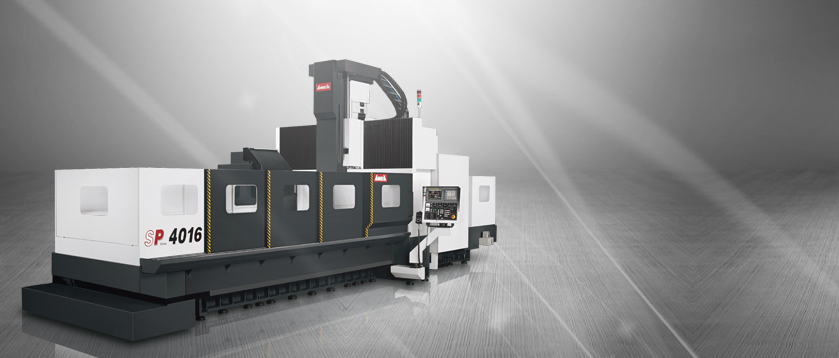

SP series

X-axis travel : 2,100 / 3,060 / 4,000 mm

Y-axis travel : 1,600 mm

Z-axis travel : 760 mm

Dist. between columns : 1,700 mm

Table size ( X-direction ) : 2,310 / 3,260 / 4,200 mm

Table size ( Y-direction ) : 1,500 mm

Table load capacity : 8,000 / 10,000 / 12,000 kg

Spindle speed : 6,000 rpm

Spindle Power ( cont. / 30 min. ) : 22 / 26 kW

Tool magazine capacity : 32 T ( 24 / 40 / 60 Opt. )
