AWEA MECHANTRONIC

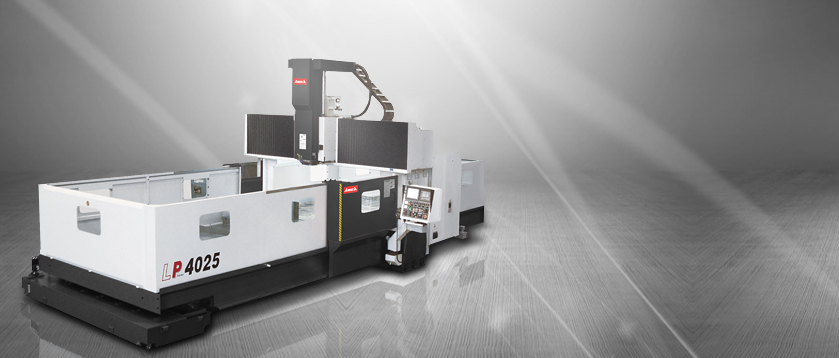

LP-4025
LP series

X-axis travel : 3,000 ~ 7,000 mm

Y-axis travel : 2,100 ~ 3,300 mm

Z-axis travel : 760 mm ( 1,000 / 1,200 / 1,400 Opt. )

Dist. between columns : 2,300 / 2,700 / 3,500 mm

Table size ( X direction ) : 3,020 ~ 7,020 mm

Table size ( Y direction ) : 2,100 ~ 3,010 mm

Table load capacity : 10,000 ~ 20,000 kg

Spindle speed : 6,000 ~ 10,000 rpm

Spindle power ( cont. / 30 min. ) : 22 / 26 kW

Tool magazine capacity : 32 T ( 60 / 90 / 120 T Opt.)
