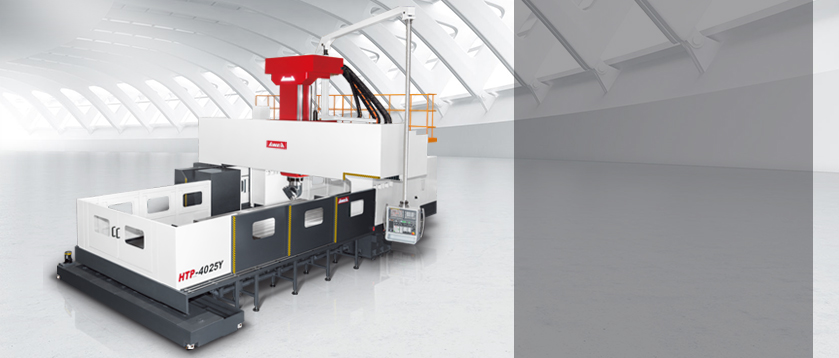

HTP Series

X-axis travel : 4,000 mm ~ 7,000 mm

Y-axis travel : 2,500 ~ 4,800 mm

Z-axis travel : 1,000 / 1,200 / 1,400 mm

Dist. between columns : 2,700 / 3,500 / 4,300 mm

Table load capacity : 15,000 ~ 20,000 kg

Spindle speed : Gear Spindle 4,000 rpm

Spindle motor : 22 / 26 kW ( Opt. 30 / 37 )
( Cont. / 30 min.)

Spindle taper : BBT50 ( ISO 50 )

X-axis rapids feed rate : 15 / 10 / 7.5 m/min.

Y-axis rapids feed rate : 12 / 10 m/min.

Z-axis rapids feed rate : 12 / 10 m/min.

Tool magazine capacity : 32 T ( Opt. 40 / 60 / 90 / 120 )
