Automatic Milling Heads

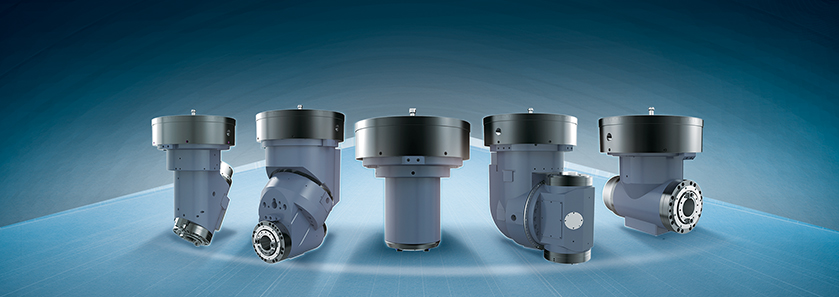

Milling Head Options

All milling heads are self developed and assembled.
The contact surface of all milling heads and covers are precisely hand scraped.

Optional Milling Head ( Manual )
35度頭
35° Head

Manual head clamp / tool clamp
Manual 45° indexing
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )

90度頭
90° Head

Manual head clamp / tool clamp
Manual 45° indexing
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )

延長頭
Extension Head

Manual head clamp / automatic tool clamp
No index function
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )

萬向頭
Universal Head

Manual head clamp / tool clamp
C-axis manual 45° indexing
A-axis manual 5° indexing
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )

Optional Milling Head ( Semi-automatic )
萬向頭
Universal Head

Automatic head clamp / manual tool clamp
C-axis auto. 5° indexing
A-axis manual 5° indexing
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )

Optional Milling Head ( Automatic )
35度頭
35° Head

Automatic head clamp / tool clamp
C-axis auto. 5°/2.5°/1° indexing
Max. speed : 3,000 rpm / 4,500 rpm
Max. output : 22 kW ( 30 HP )
Optional CTS

90度頭
90° Head

Automatic head clamp / tool clamp
C-axis auto. 5°/2.5°/1° indexing
Max. speed : 3,000 / 4,500 rpm
Max. output : 22 kW ( 30 HP )
Optional CTS

延長頭
Extension Head

Automatic head clamp / tool clamp
Max. speed : 3,000 rpm ( Z +600 mm ) / 6,000 rpm ( Z +350 mm )
Max. output : 22 kW ( 30 HP )
Optional CTS

萬向頭

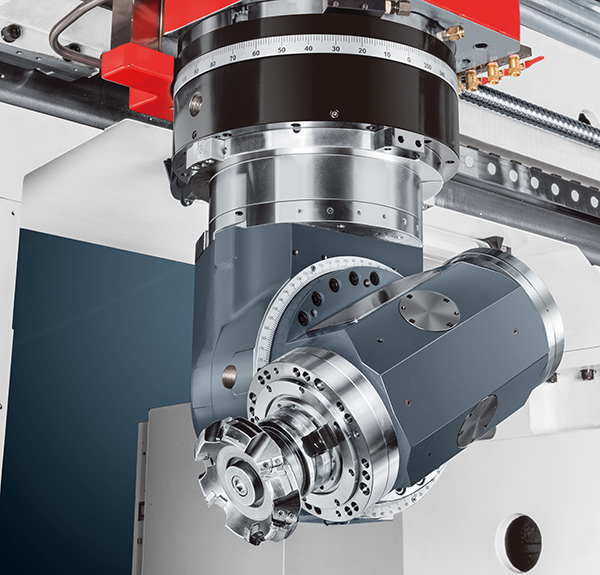

Universal Head
( Orthogonal type )

Automatic head clamp / tool clamp
A/C axes auto. 5°/2.5°/1° indexing
Max. speed : 3,000 / 4,500 rpm
Max. output : 22 kW ( 30 HP )
Optional CTS
