Multi-face Machining Capability
The optional automatic head changer and the vertical / horizontal ATC system enable the machine to perform highly efficient multi-face machining.
High efficiency automatic head storage magazine
• The dual automatic head storage compartments accommodates one cover and one 90° head. Consisting of swing arms and
precision taper roller bearings, the system provides reliable and high efficiency head exchanges.
• The head changing system is attached to the column, thus reducing floor space.
• The magazine has an independent auto door that only opens during head exchanges to avoid chip and coolant contamination.
High reliability automatic vertical / horizontal ATC system
• The vertical / horizontal ATC system provides quick tool changes.
• Sensors and sequence scanning ensure safety and reliability.
• Standard 32 tools magazine; 40T / 60T / 90T / 120T magazine optional.
Automatic head storage compartment
Automatic head storage compartment
Swing type head storage

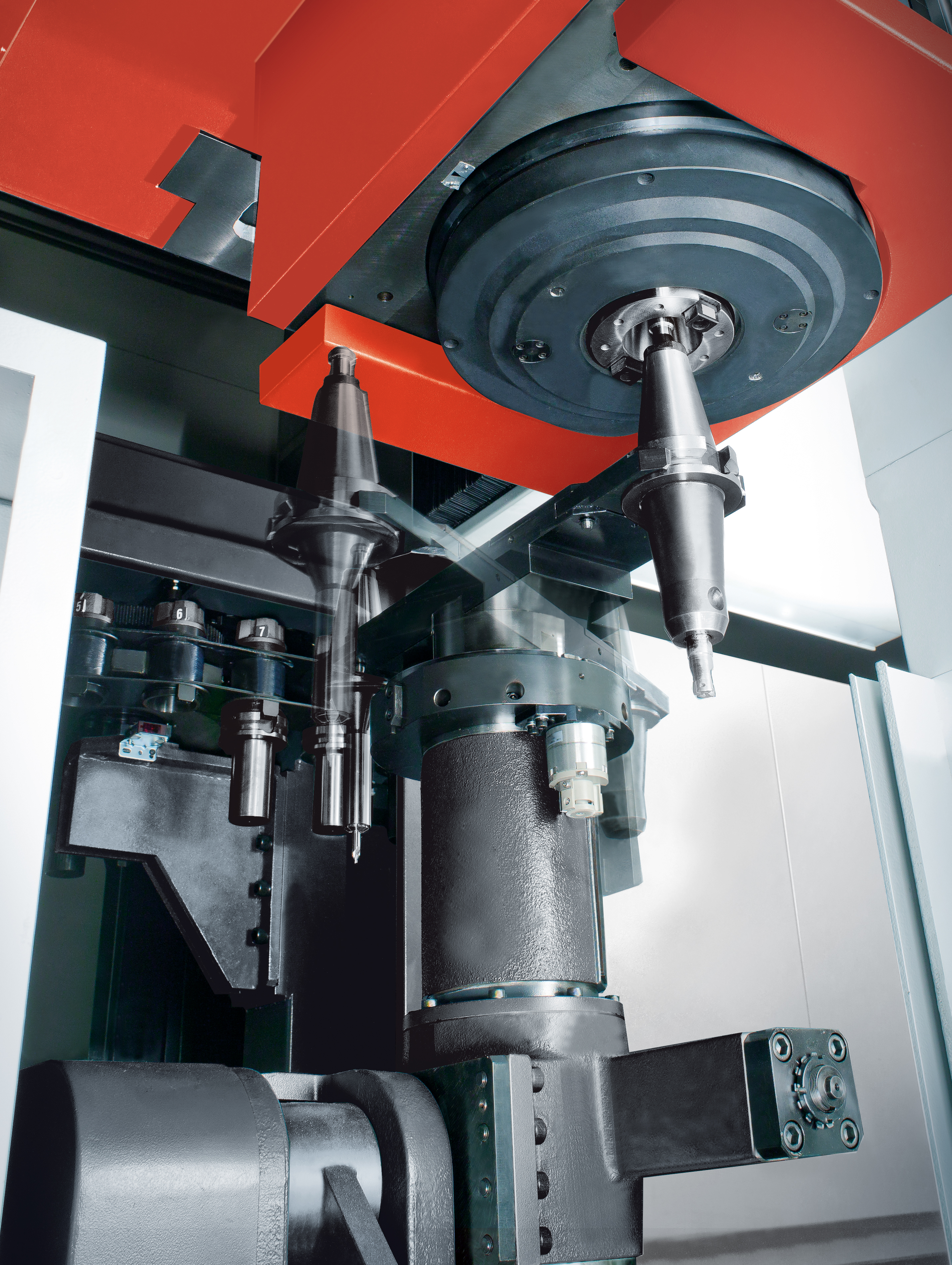

Vertical ATC

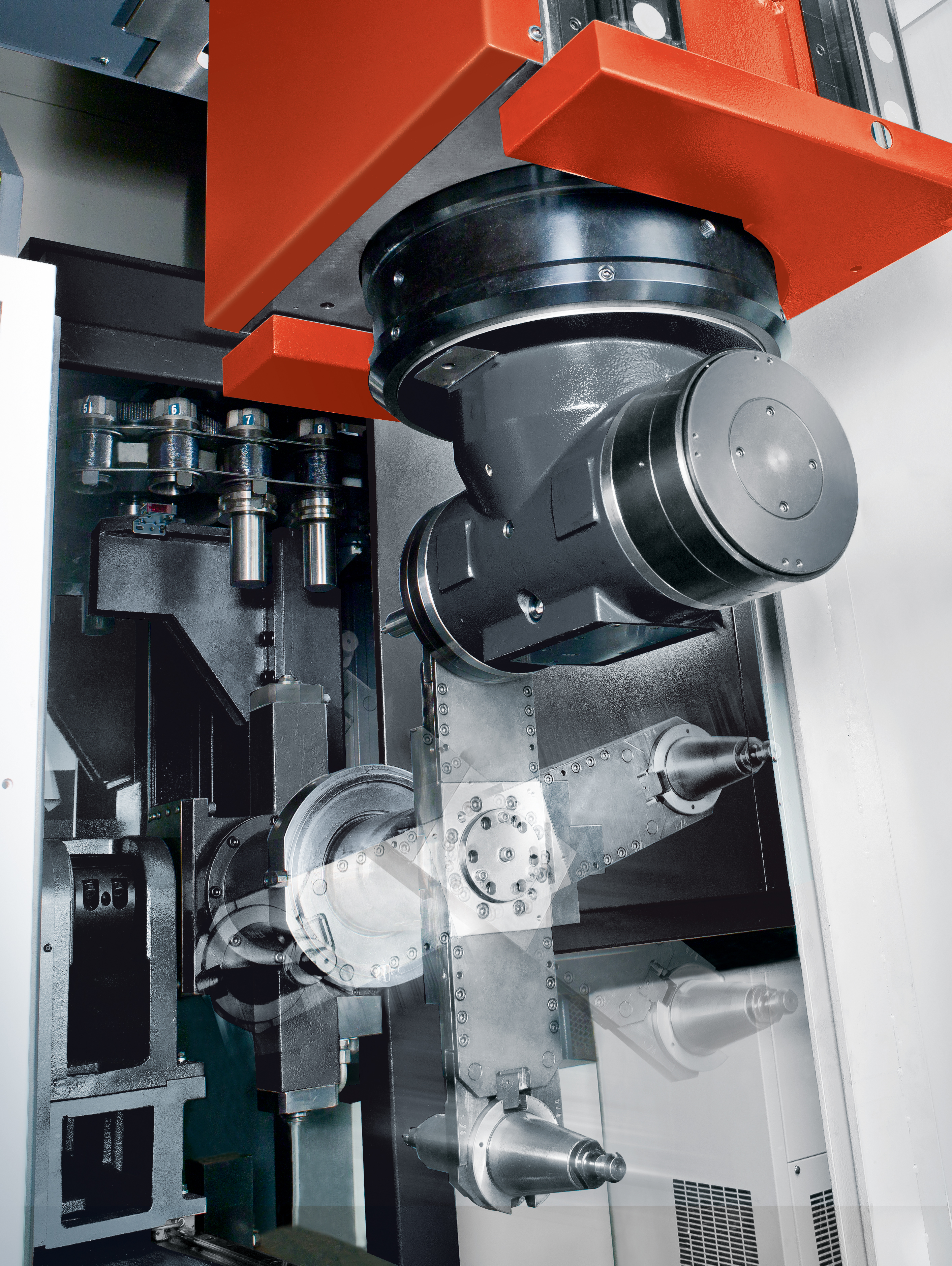

Horizontal ATC
Multi-face 3D coordinate rotation
The standard 3D coordinate transform function can adjust the coordinate system to fit different machining orientations according to machining requirements. This helps to reduce cycle times.
Straight milling
Drilling
Slanted angle milling coordinate
( must order universal head )
slanted milling coordinate
