Vertical Machining Center

　
Introducing AWEA with over 30 years manufacturing abilities and advanced technology skills, the vertical machining centers are based on high rigidity structure and three axes high precision linear guide way design.
Based on innovative technology, AWEA is specialized on high precision parts and mold machining industry. It can fully present high precision and high efficiency machining ability.
With fast arm type ATC and chip conveying system, it is to provide you with fast, strong, stable machining performance.
AWEA vertical machining centers are broadly used in high precision machine parts manufacturers, which can easily meet your demands of today and tomorrow.
All AWEA vertical machining centers are adopted one-piece ball screw driving motor support and bearing support to enable cutting force to spread evenly into casting body, so it efficiently enhances axial system of entire rigidity and prevents deformation of ball screw.

Introduction of Model

Details

NV series 650 / 850

High Performance Vertical Machining Center

X-axis travel : 650 / 850 mm
Y-axis travel : 510 / 550 mm
Z-axis travel : 510 / 635 mm
Table size ( X direction ) : 750 / 1,000 mm
Table size ( Y direction ) : 510 / 550 mm
Table load capacity : 500 / 700 kg
Spindle speed : Direct drive 8,000 rpm
Spindle motor ( cont. / 15 min ) :
7.5 / 11 ~ 11 / 15 kW
Spindle taper : BBT40
X / Y / Z rapid feed rate : 36 / 36 / 24 m/min.
Tool magazine : 24 T

Standard Accessories

AICC contouring control /
Machining condition select
Spindle air curtain
Coolant nozzle around spindle
Gravity axis anti-drop function
Centralized auto. lubricating system
Roof enclosed splash guard
Coolant system with pump and tank
Chain type chip conveyor ( NV-850 )
Chips wash down

Heat exchanger for electrical cabinet
Rigid tapping
Automatic power-off system
Alarm light
Air gun / Water gun
Foundation bolt kit
Transformer
Tool box

Details

AF series 650 / 1000 / 1250

High Performance Vertical Machining Center

X-axis travel : 650 ~ 1,250 mm
Y-axis travel : 510 ~ 620 mm
Z-axis travel : 510 ~ 620 mm
Table size ( X direction ) : 750 ~ 1,350 mm
Table size ( Y direction ) : 510 ~ 620 mm
Table load capacity : 500 ~ 1,000 kg
Spindle speed : Direct drive 10,000 rpm
Spindle motor ( cont./ 30 min ) :
7.5 / 11 ~ 11 / 15 kW
Spindle taper : BBT40
X / Y / Z rapid feed rate :
36 / 36 / 24 ~ 48 / 48 / 32 m/min.
Tool magazine : 24 T

Standard Accessories

AICC contouring control /
Machining condition select
Spindle air curtain
Spindle cooling system
Gravity axis anti-drop function
Coolant nozzle around spindle
Chips wash down
Caterpillar type chip conveyor( AF-1000 / 1250 )
Coolant system with pump and tank
Centralized auto. lubricating system

Transformer
Roof enclosed splash guard
Alarm light
Heat exchanger for electrical cabinet
Oil skimmer
Automatic power-off system
Air gun / Water gun
Foundation bolt kit
Tool box

Details

NFV series 1000 / 1250 / 1250B

High Performance Vertical Machining Center

X-axis travel : 1,020 ~ 1,250 mm
Y-axis travel : 550 / 620 mm
Z-axis travel : 635 / 620 mm
Table size ( X direction ) : 1,200 / 1,350 mm
Table size ( Y direction ) : 550 / 620 mm
Table load capacity : 700 / 1,000 kg
Spindle speed :
Direct drive 8,000 ~ 12,000 rpm
Spindle motor ( S1 / S2,S3 60% / S3 25% ) :
11 / 13 / 15 ~ 15 / 18.5 / 20.3 kW
Spindle taper : BBT40 / BBT50
X / Y / Z rapid feed rate :
36 / 36 / 48 ~ 48 / 48 / 32 m/min.
Tool magazine : 24 T

Standard Accessories

AICC2 function / Machining condition select
( NFV-1000 / NFV-1250 )
Spindle air curtain
Spindle cooling system
Gravity axis anti-drop function
Coolant nozzle around spindle
Chips wash down
Caterpillar type chip conveyor
Coolant system with pump and tank
Centralized auto. lubricating system

Transformer
Roof enclosed splash guard
Alarm light
Heat exchanger for electrical cabinet
Oil skimmer
Automatic power-off system
Air gun / Water gun
Foundation bolt kit
Tool box

Details

NDV-1060

High Speed Vertical Machining Center

X-axis travel : 1,060 mm
Y-axis travel : 600 mm
Z-axis travel : 600 mm
Table size ( X direction ) : 1,200 mm
Table size ( Y direction ) : 600 mm
Table load capacity : 700 kg
Spindle speed : Direct drive 15,000 rpm
Spindle motor ( S1 / S2 / S3 ) : 11 / 13 / 15 kW
Spindle taper : HSK-A63
X / Y / Z rapid feed rate : 36 / 36 / 24 m/min.
Tool magazine : opt. 24 T

Standard Accessories

AICC 2 / 400 blocks look ahead /
Machining condition select /
Nano smoothy machining
Spindle air curtain
Coolant nozzle around spindle
Spindle cooling system
Gravity axis anti-drop function
Chips wash down
Caterpillar type chip conveyor
Coolant system with pump and tank

Centralized auto. lubricating system
Transformer
Roof enclosed splash guard
Alarm light
Heat exchanger for electrical cabinet
Oil skimmer
Automatic power-off system
Air gun / Water gun
Foundation bolt kit
Tool box

Details

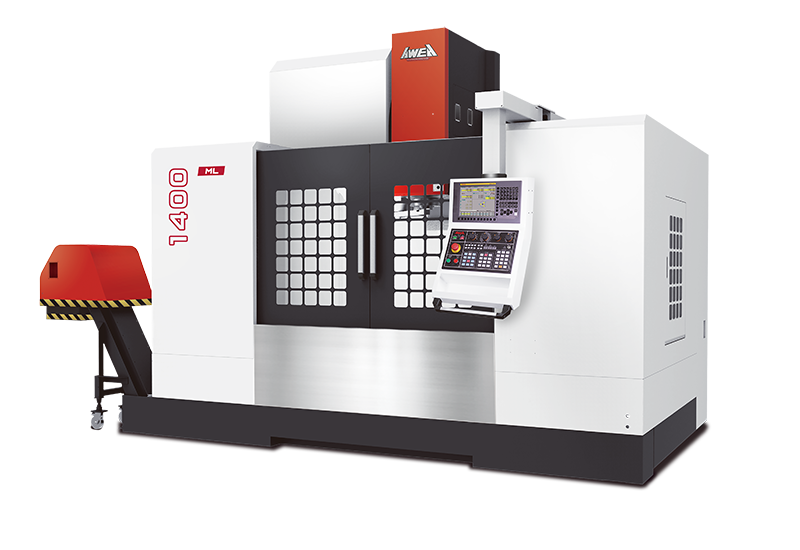

ML-1365

High Rigidity Vertical Machining Center

X-axis travel : 1,300 mm
Y-axis travel : 650 mm
Z-axis travel : 610 mm
Table size ( X direction ) : 1,400 mm
Table size ( Y direction ) : 650 mm
Table load capacity : 1,000 kg
Spindle speed : Gear 6,000 rpm
Spindle motor ( 60 min / 30 min / max. ) :
15 / 18.5 / 20.3 kW
Spindle taper : BBT50
X / Y / Z rapid feed rate : 36 / 36 / 24 m/min.
Tool magazine : 24 T

Standard Accessories

Spindle air curtain
Coolant nozzle around spindle
Spindle cooling system
Gravity axis anti-drop function
Chips wash down
Caterpillar type chip conveyor
Coolant system with pump and tank
Centralized auto. lubricating system
Transformer

Roof enclosed splash guard
Alarm light
Heat exchanger for electrical cabinet
Oil skimmer
Automatic power-off system
Air gun / Water gun
Foundation bolt kit
Tool box
