5-Face Machining Center

　
The full product line provides high efficiency, high productivity with the most affordable multi-face machining solution.
The LP-F series can be equipped with an automatic head changer and a vertical / horizontal ATC system to provide a maximum efficiency 5-face machining center.
The contact surface of all milling heads and covers are precisely hand scraped.
The modular spindle design offers cutting flexibility for various working conditions.
The Multi-face Coordinate Conversion System can automatically convert the coordinates between the faces of the work piece, thus massively saving programming time.

Introduction of Model

Details

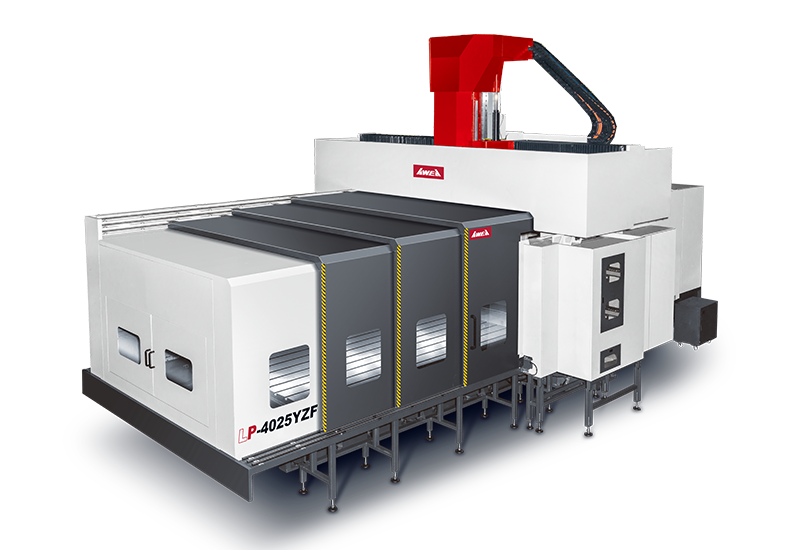

LP-F series

Bridge Type 5-Face Machining Center

X-axis travel : 3,000 ~ 7,000 mm
Y-axis travel : 2,800 ~ 4,000 mm
Z-axis travel : 760 mm
Distance from spindle nose to table top :
200 ~ 960 mm
Table size ( X direction ) : 3,020 ~ 7,020 mm
Table size ( Y direction ) : 2,010 ~ 3,000 mm
Spindle taper : BT50
Spindle speed :　6,000 rpm
Spindle motor ( cont./ 30 min ) : 22 / 26 kW
Tool magazine : 32 T

Standard Accessories

Spindle cooling system
Centralized automatic lubricating system
Tool magazine : 32 T
4 pcs splash guard
Coolant system with pump and tank
Coil type chip augers

Caterpillar type chip conveyor and bucket
Foundation bolt kit
Tool box
Alarm light
Air gun
Automatic power-off system
