The direct drive system efficiently blocks the heat that are generated from the motor which reduces thermal deformation while increasing working accuracy during long hours.

The high precision beveled ball bearings adopted with optimal span and two-support points design increases rigidity and durability for the spindle.

The motors and spindles use high rigidity coupling to reduce vibration caused by the lateral force from the spindle which ensures working stability and accuracy.

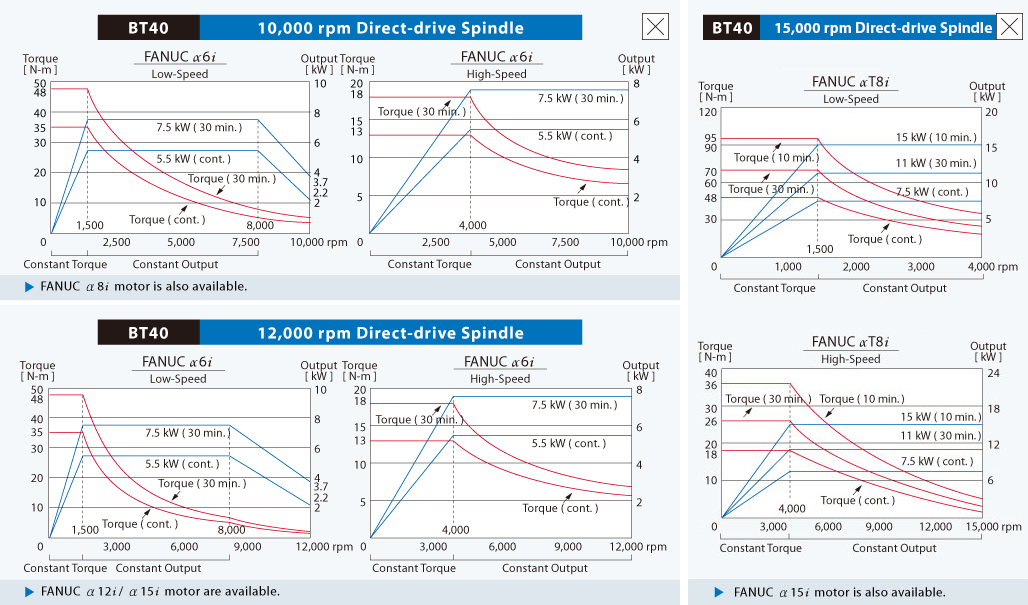

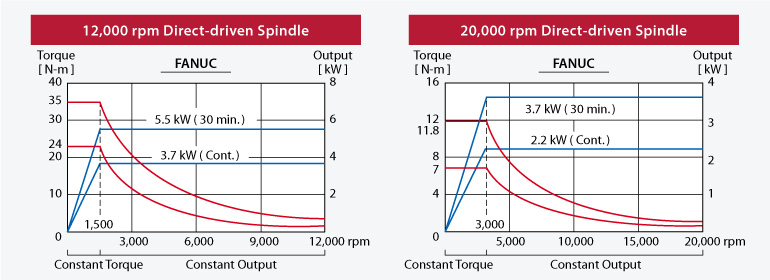

Offers 12,000 / 15,000 / 20,000 rpm to meet various working requirements.
