High Axial Feed Rate System
3 axes feeding system use absolute servo direct drive motor to provide powerful thrust and fast acceleration and deceleration. This can efficiently lower motor load and reduce heat while ensuring maximum performance and accuracy.
The motor mount and casting are of one-piece design which can distribute the cutting stress evenly and increase axial overall rigidity.
X / Y axes fastest feed rate can reach up to 50 m/min. 60 m/min. is also available ( Opt. ).

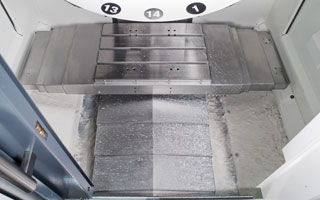

High Effeciency Chip Disposal System
The high pressure water jet chip removal system can quickly remove the chips out of the working zone. Then the large hatchback chip trough transports the chips to the chip collector at the back of the machine.
The chip collector and cooling liquid tank are detachable which is easy to maintain.
The chips flush coolant system is also available ( Opt. ), which effectively removes chips and keeps the working zone clean.

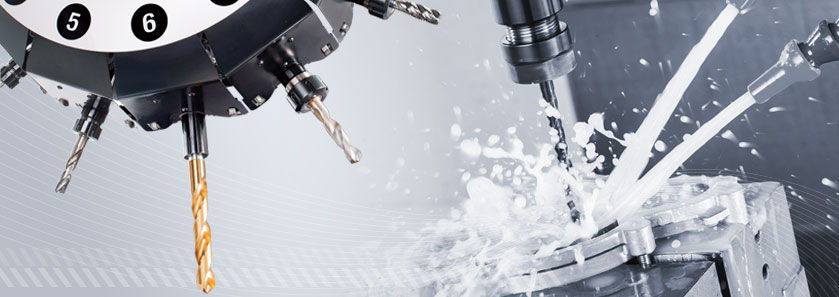

High Speed ATC System
14T ATC system and synchronous unclamping type tool changer design, that can calculate the shortest tool change path to reduce tool change time and increase working efficiency.
Top
Variety of Control Systems
MITSUBISHI M70V
8.4-inch color LCD unit
64-bit CPU
NANO interpolation
Compact flash card interface in the CNC main unit
Machining program capacity is to the standard of 512 KB ( 1,280 m )
Lock ahead block up to 168 blocks
USB port for data transfer
Fast Ethernet
SIEMENS SINUMERIK 828D
8.4-inch color LCD unit
80-bit NANO accuracy
Perfect work-piece surface with advanced surface
Look ahead block up to 50 blocks
NURBS interpolation
Compact flash card interface in the CNC main unit
USB port for data transfer
Network disk drive
