High Performance Spindle System

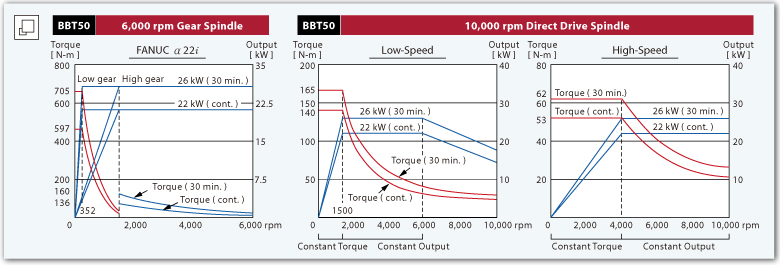

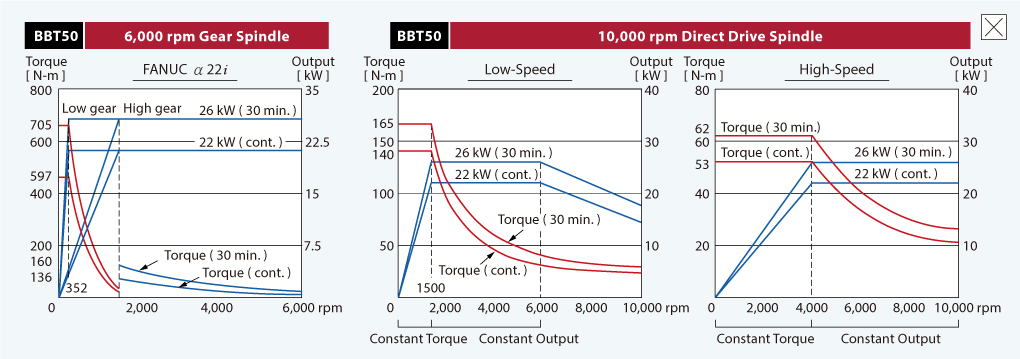

The 10,000 rpm high speed direct drive spindle can effectively isolate the heat generated by the spindle rotation, thereby reducing heat deflection and enhancing precision under long working periods.
The 6,000 rpm high torque gear spindle is equipped with a high horse powered 26 kW spindle motor which can offer maximum torque of 705 N-m at 352 rpm.

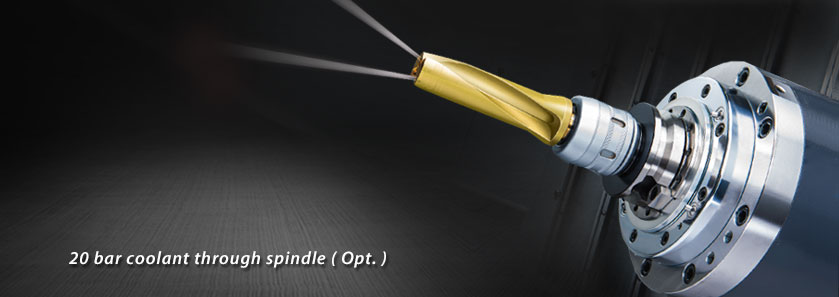

20 bar coolant through spindle ( Opt. )
The inner taper of the spindle conforms with the BBT50 tool to provide a firmer grip, therefore reducing the vibration from the tools.
