ITALIAN Made Two Axes Head
The MEGA5 series is available with two kinds of two axes heads : the compact structure series ( TCH-20F ) and the high torque series ( TCH-30F ), to address various cutting requirements.

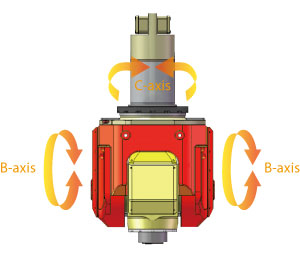

The B and C axes are driven by direct drive motors that provide high speed, high torque, and zero backlash.
The B-axis is equipped with two motors to help overcome inertia and improve agility.
A hydraulic clamping system provides ample locking force to support heavy cutting at fixed angles.
|
TCH-20F |
TCH-30F |
| Axis |
B-axis |
C-axis |
B-axis |
C-axis |
| Max. speed |
50 rpm |
50 rpm |
50 rpm |
50 rpm |
| Max. torque |
1,400 Nm |
1,300 Nm |
2,200 Nm |
2,400 Nm |
| Clamping torque |
4,000 Nm |
4,000 Nm |
8,000 Nm |
8,000 Nm |
| Positioning accuracy |
± 3 arc.sec |
± 3 arc.sec |
± 3 arc.sec |
± 3 arc.sec |
| Rotary range |
± 100˚ |
± 250˚ |
± 110˚ |
± 250˚ |
optimized symmetric fork structure provides best rigidity.
Cutting force flow is more evenly distributed in symmetric structure.
The B-axis fork structure of the TCH-30F is made from ultra-strong GGG40 modular graphite cast iron.
Super rigid cross roller bearings greatly improve cutting capability.
High resolution absolute encoders ensure optimal machining accuracy ( standard equipment ).
Integrated water cooling circuit provides reliable accuracy during long-term machining operations.
Optional coolant through spindle (CTS) is available.
