Ultimate Machining Power

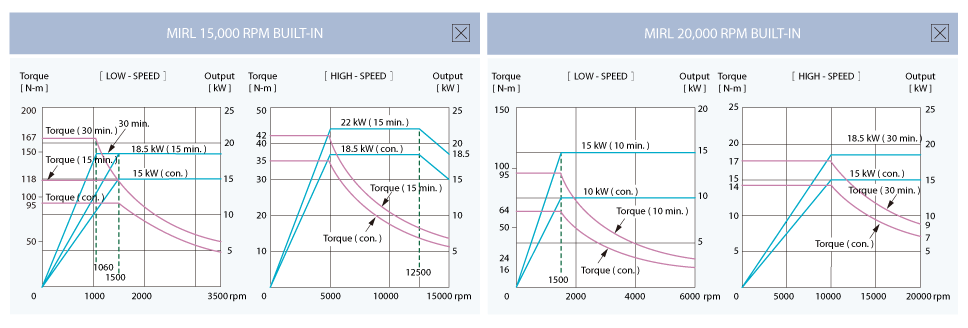

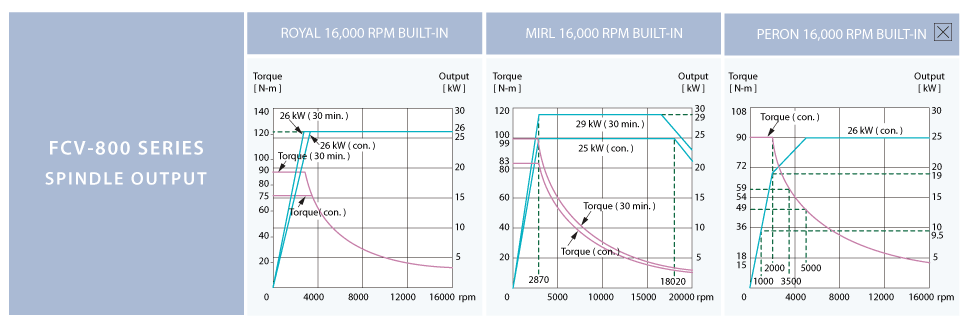

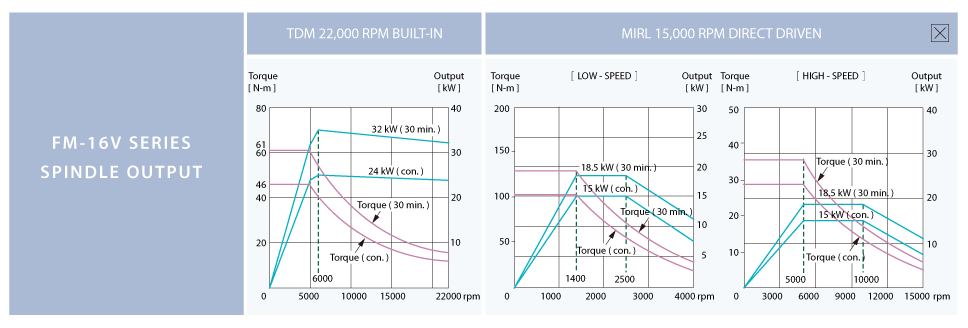

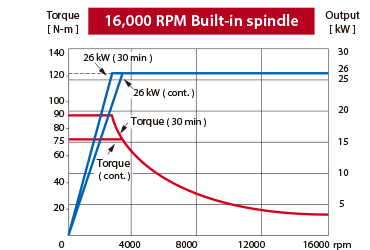

16,000 / 22,000 rpm high speed built-in spindle can export 100% motor output, which provides lower noise and higher accuracy to fulfill dies & molds machining needs.
P4 grade high precision bearings configuration is designed for super heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.
Machining Capacity
| Tool diameter ( mm ) |
Spindle speed ( rpm ) |
Feed rate ( mm ) |
Cutting depth ( mm ) |
Cutting width ( mm ) |
Feed rate / Blade ( mm ) |
Spindle load ( % ) |
|
|---|---|---|---|---|---|---|---|
| High speed drilling | Ø40 | 70 | 90 | 20 | --- | 0.13 | 35 |
| Tapping | M42*4.5 | 50 | 225 | 20 | --- | --- | --- |
| Heavy cutting | Ø 50 | 2,000 | 10,000 | 1 | 32 | 1 | 82 |
Specifications are subject to change without notice.
High Speed ATC System
Standard equipped 40T ( 60 T / 80T opt. ) arm type ATC system.
Tool change efficiently reduce tool changing time.
Short cut tool path perform tool change swiftly and improve machining efficiency.
Enclosed ATC guard design can avoid contamination of cutting process.
