AWEA MECHANTRONIC

MACHINE CAPACITY

AF-1250 Series
Work Piece Controller Spindle Total Process
Cycle Time		 Material Material
Dimension

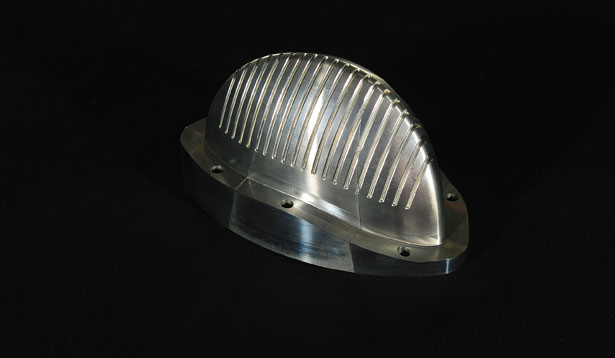

Golf Parts Mould FANUC 31i-MB HSK63A Built-in 22000 rpm 52h 30m Aluminum 196 x 84 x 86 mm

Tool Diameter Nose Ball
Radius		 Tool
Materials		 Processing
Way		 Spindle
Speed 		Feed
Rate
Nose Ball End Mill 20 mm 0.4 mm Carbide Rough Machining 7,600 rpm 4,000 mm/min.
End Mill 12 mm 0 mm Carbide Precision Machining 5,000 rpm 1,200 mm/min.
End Mill 12 mm 0 mm Carbide High-Precision Machining 5,000 rpm 1,200 mm/min.
Ball End Mill 10 mm 5 mm Carbide Precision Machining 8,000 rpm 2,000 mm/min.
Ball End Mill 10 mm 5 mm Carbide High-Precision Machining 8,000 rpm 2,000 mm/min.
Ball End Mill 4 mm 2 mm Carbide Precision Machining 12,000 rpm 1,000 mm/min.
Ball End Mill 2 mm 1 mm Carbide Precision Machining 14,500 rpm 800 mm/min.
Ball End Mill 4 mm 2 mm Carbide High-Precision Machining 12,000 rpm 1,000 mm/min.
Ball End Mill 1 mm 0.5 mm Carbide High-Precision Machining 14,500 rpm 400 mm/min.
Ball End Mill 0.6 mm 0.3 mm Carbide High-Precision Machining 400 rpm 150 mm/min.
