MACHINE CAPACITY

AF-1000 Series

Work Piece	Controller	Spindle	Total Process Cycle Time	Material	Material Dimension

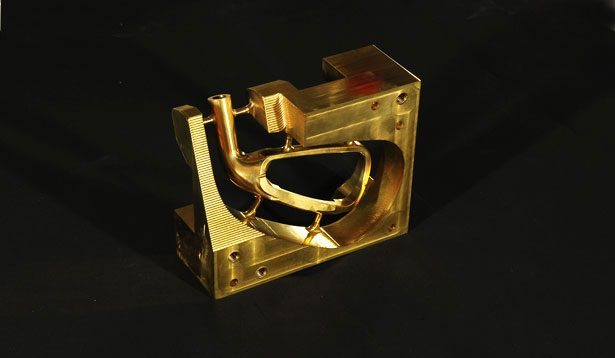

Golf Head	FANUC 31i-MB	Direct Drive 15,000 rpm	8h33m36s	Bronze	150 x 120 x 70 mm

Tool	Diameter	Nose Ball Radius	Tool Materials	Processing Way	Spindle Speed	Feed Rate
Nose Ball End Mill	20 mm	0.4 mm	Carbide	Rough Machining	6,600 rpm	4,000 mm/min.
End Mill	12 mm	0 mm	Carbide	Precision Machining	5,000 rpm	2,000 mm/min.
End Mill	12 mm	0 mm	Carbide	High-Precision Machining	5,000 rpm	1,200 mm/min.
Nose Ball End Mill	10 mm	1 mm	Carbide	Precision Machining	8,000 rpm	2,000 mm/min.
Ball End Mill	6 mm	3 mm	Carbide	Precision Machining	12,000 rpm	1,800 mm/min.
Ball End Mill	6 mm	3 mm	Carbide	High-Precision Machining	12,000 rpm	1,800 mm/min.
Ball End Mill	2 mm	1 mm	Carbide	Precision Machining	14,000 rpm	1,200 mm/min.
Ball End Mill	1 mm	0.5 mm	Carbide	High-Precision Machining	14,500 rpm	800 mm/min.
End Mill	6 mm	0 mm	Carbide	Precision Machining	10,000 rpm	1,000 mm/min.
End Mill	6 mm	0 mm	Carbide	High-Precision Machining	10,000 rpm	1,000 mm/min.
