Quill diameter Ø120 mm, W-axis travel can extend to 600 mm.

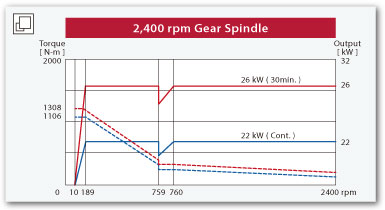

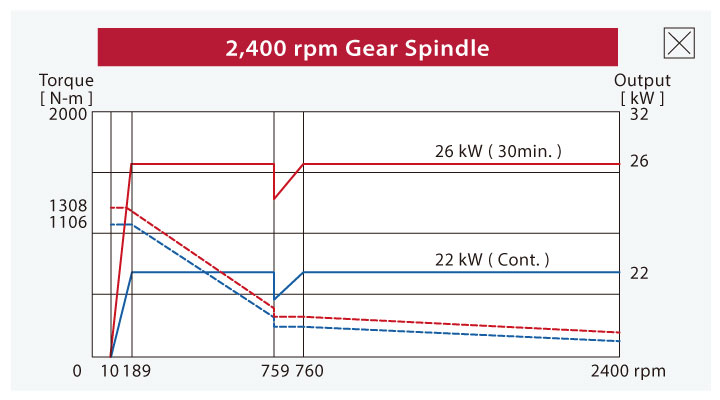

Max. spindle speed at 2,400 rpm with 2-step gear box which can provide maximum torque output at 1,308 N-m under 189 rpm.

W-axis feed system combined ball screw with linear guide ways, W-axis extension can be determined according to different kinds of processing requirement.

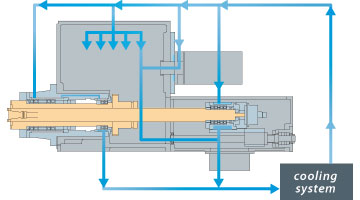

All series is equipped with a spindle oil cooler and cooling jacket, the temperature-regulated volume of cooling oil automatically maintain the temperature of bearings, motor, and gears within precisely defined range which effectively reduce the spindle thermal deformation thus achieving higher machining accuracy.

Strong ram with cross section at 480 x 470 mm, W-axis travel can extend to 600 mm.

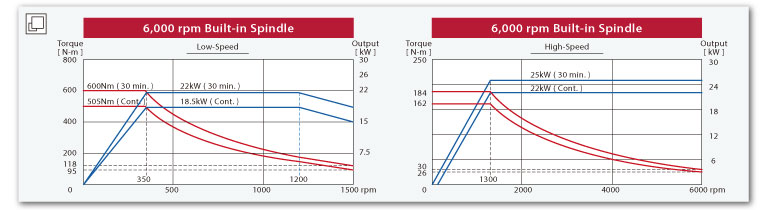

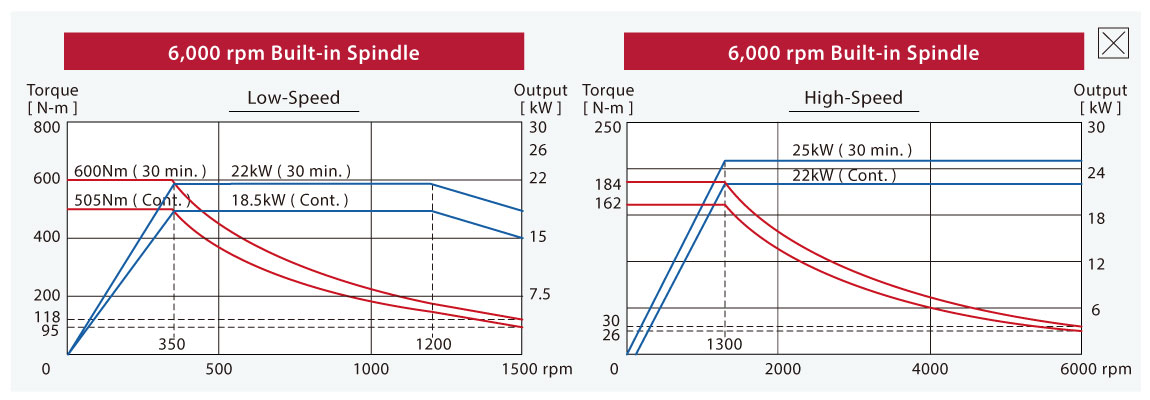

Max. spindle speed at 6,000 rpm ( 8,000 rpm as option ) with built-in spindle which can provide maximum torque output at 600 N-m under 350 rpm.

W-axis feed system combined ball screw with linear guide ways, W-axis extension can be determined according to different kinds of processing requirement.
