AWEA

MVP-xx32 Bridge Type Moving Cross Raill 5-Face Machining Center:

TABLE
Models	MVP-4032	MVP-5032	MVP-6032	MVP-7032	MVP-8032
X-axis travel	4,000 mm	5,000 mm	6,000 mm	7,000 mm	8,000 mm
Y-axis travel	3,200 mm
Z-axis travel	1,000 mm ( Opt. 1,200 / 1,400 mm )
W-axis travel	1,250 mm
Dist. between columns	2,700 mm
Spindle nose to table top	200 ~ 2,450 mm ( 7.87" ~ 96.45" )
Table size ( X x Y )	4,020 x 2,400 mm	5,020 x 2,400 mm	6,020 x 2,400 mm	7,020 x 2,400 mm	8,040 x 2,400 mm
Table load capacity	15,000 kg	18,000 kg	20,000 kg
SPINDLE
Max. spindle speed	V : 10 ~ 4,000 rpm ; H : 20 ~ 3,000 rpm

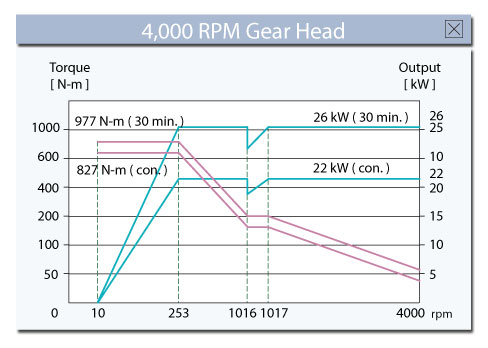

Spindle motor output ( cont. / 30 min. )	22 / 26 kW ( 30 / 35 HP )
Spindle Taper	BT 50
FEED RATE
X-axis repids	15 m/min.	10 m/min.		7.5 m/min.
Y-axis rapids	12 m/min.
Z-axis rapids	10 m/min.
W-axis rapids	3 m/min.
Cutting feedrate	5 m/min.
TOOL MAGAZINE
Tool magazine capacity	60 T
Max. tool diameter / adjacent	Ø 127 / Ø 215 mm
Max. tool length	400 mm
Max. tool weight	20 kg
ACCURACY
Positioning accuracy ( JIS B 6338 )	± 0.010 mm / Full Travel
Positioning accuracy ( VDI 3441 )	P = 0.025 mm / Full Travel	P = 0.030 mm / Full Travel	P = 0.035 mm / Full Travel	P = 0.040 mm / Full Travel
Repeatability ( JIS B 6338 )	± 0.003 mm
Repeatability ( VDI 3441 )	P = 0.018 mm	P = 0.022 mm	P = 0.026 mm	P = 0.030 mm
GENERAL
Power Requirement	AC 220 + 10% 3 phase / 80 KVA
Pneumatic pressure requirement	5 ~ 8 kg / cm²
Hydraulic unit tank capacity	290 L
Lubrication oil tank capacity	6 L
Coolant tank capacity	750 L
Machine weight	70,000 kg	75,000 kg	80,000 kg	85,000 kg	95,000 kg

Specifications are subject to change without notice.
